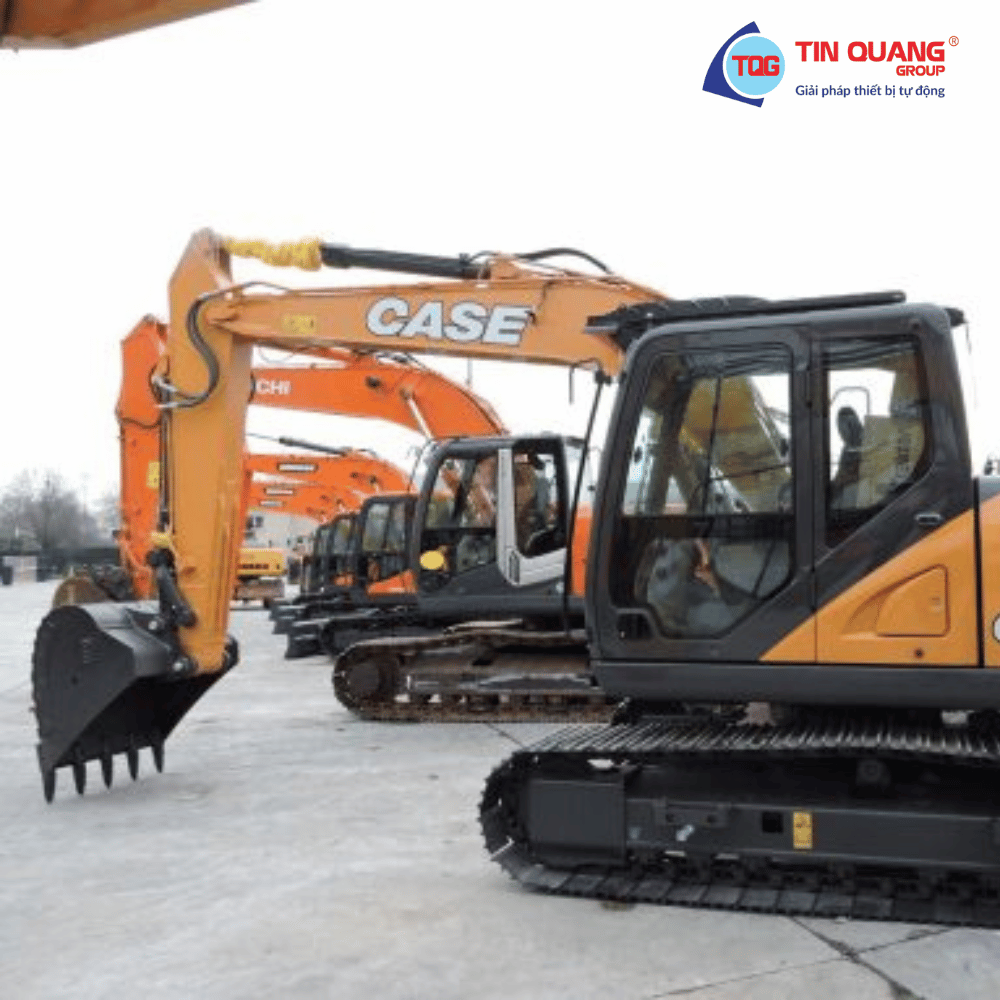

Case CX130C Crawler Excavators

Our 13 ton CX130C is fitted with a punchy 3.0 l, Isuzu engine delivering 98hp and outstanding fuel efficacy. With a full range of buckets and attachments the CX130C is your go to carrier tool for almost any worksite.

Operating Weight: 12,600 Kg
Engine Power: 73 kW/ 98 hp

Add to wishlist

Description
Case Brand

ENGINE

Model	ISUZU GG-4JJ1X
Type	Water-cooled, 4-cycle diesel, 4-cylinder in line, High pressure common rail system (electric control), Turbocharger with air cooled intercooler.
Emissions certified	EGR Less
Displacement	3.0 l
Bore & stroke	95.4 x 104.9 mm
Horsepower ISO 14396 GROSS kW (hp) @ 2000 min-1	73 (98)
Horsepower SAE J1349 NET kW (hp) @ 2000 min-1	70.9 (95)
Maximum torque ISO 14396 GROSS	346 Nm @ 1600 min-1
Maximum torque SAE J1349 NET	340 Nm @ 1600 min-1

HYDRAULIC SYSTEM

Type	2 variable displacement axial piston pumps with regulating system
Max oil flow	2 x 129 l/min @ 2000 min-1
Working circuit pressure – Boom/Arm/Bucket circuit	34.3 MPa
Working circuit pressure – Boom/Arm/Bucket (with auto power boost)	36.3 MPa
Working circuit pressure – Swing circuit	27.9 MPa
Working circuit pressure – Travel circuit	34.3 MPa

SWING

Swing torque	33,000 Nm
Maximum swing speed	14.3 min-1

FILTERS

Suction ﬁlter	105 μm
Pilot line ﬁlter	8 μm
Return ﬁlter	6 μm

ELECTRICAL SYSTEM

Circuit	24 V
Alternator	50 Amp
Starter	4.0 kW
Batteries	2 x 12 V 62 Ah/5 HR

UNDERCARRIAGE

Number of carrier rollers (each side)	1
Number of track rollers (each side)	7
Number of shoes (each side)	43
Type of shoes	Triple grouser shoe

CAPACITIES

Fuel tank	260 lt
Hydraulic system	157 lt
Cooling system	17,6 lt
Engine crank CASE	17 lt
