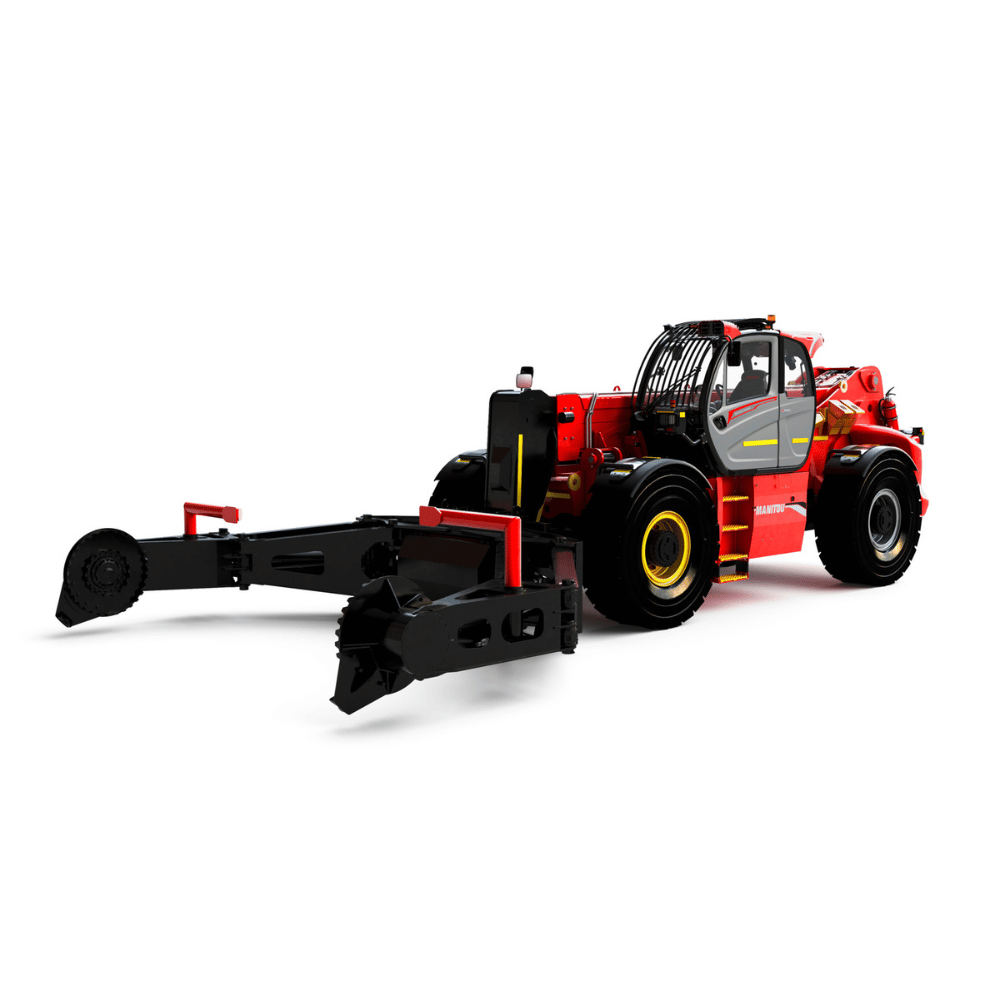

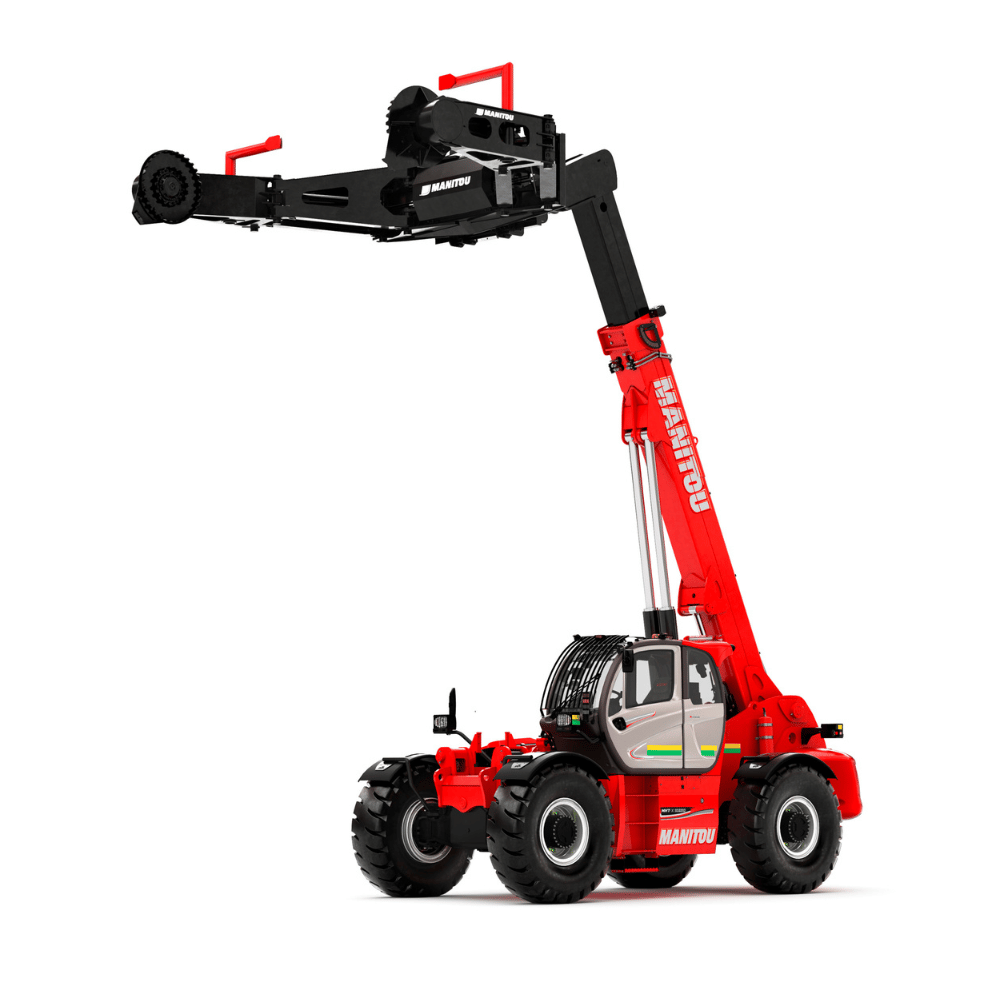

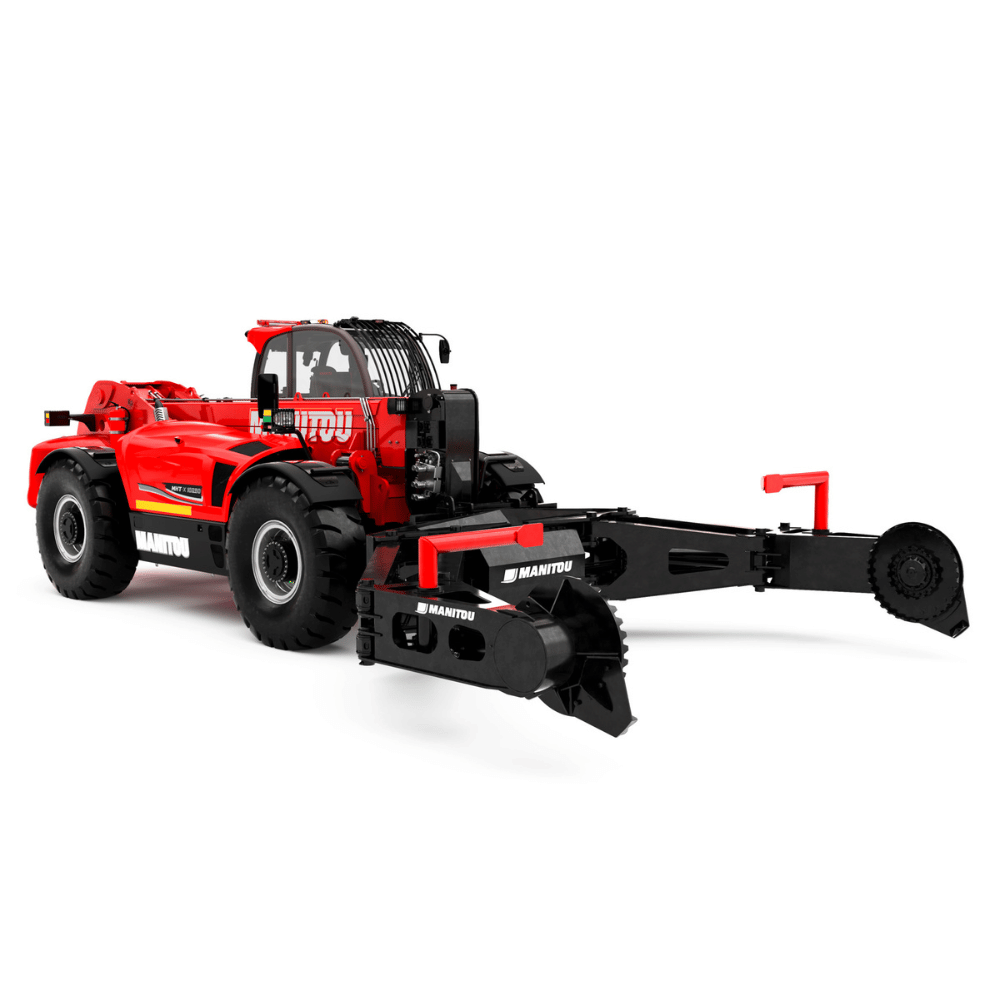

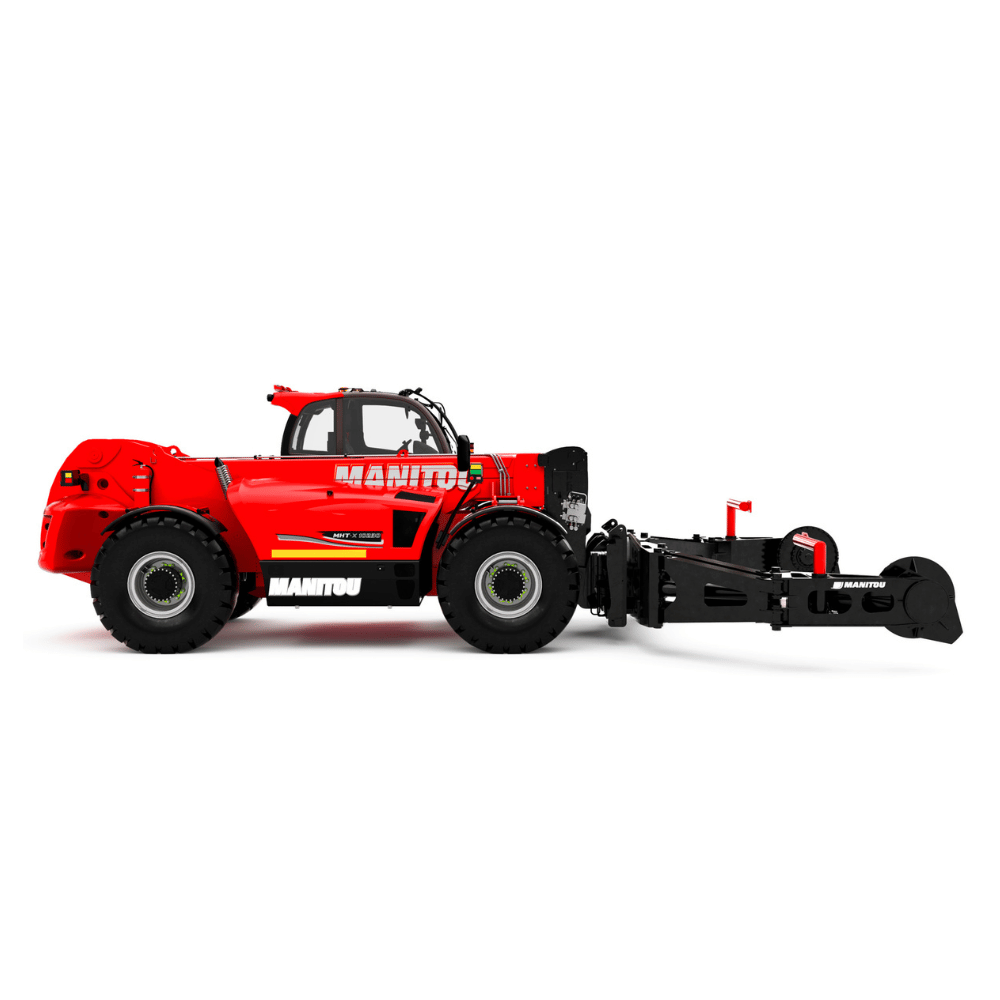

Manitou MHT-X 11250 Mining

Max. capacity: 24999 kg
Load center of gravity: 900 mm
Max. lifting height: 10.60 m
Overall length: 8.92 m
Unladen weight (with forks): 31610 kg
Ground clearance: 0.47 m
Wheelbase: 4.10 m
Length to face of forks: 7.12 m
Overall width: 2.84 m
Overall height: 3.03 m
Overall cab width: 0.95 m
Tilt-up angle: 12 °
Tilt-down angle: 105 °

Add to wishlist

Description

The MHT-X 11250 Mining telehandler is specially designed for use in the mines in our production facilities.

Versatile with accessories such as tyre and cylinder handlers, jib, forks and basket, it is designed for the safety of the operator and his environment.

With a lifting capacity of 25 t, its boom goes up to 10.60 m: it is the ideal solution for all types of maintenance and/or servicing.

Its turning radius of 5.50 m and its high ground clearance (47 cm) allow this telescopic handler to maneuver easily in mines.

It is factory equipped with dedicated mining equipment that facilitates the work of operators for all types of applications inside the mine.

Reinforced braking system (SAHR type)

Daily brake test system
Emergency steering
Protection grids
External emergency stops
360° vision system + reversing radar
Resettable fuses
Directional lights
Reflective strips etc.
Maintenance is simplified by easy access to filters and components in the engine cover.
Safety, productivity and profitability
