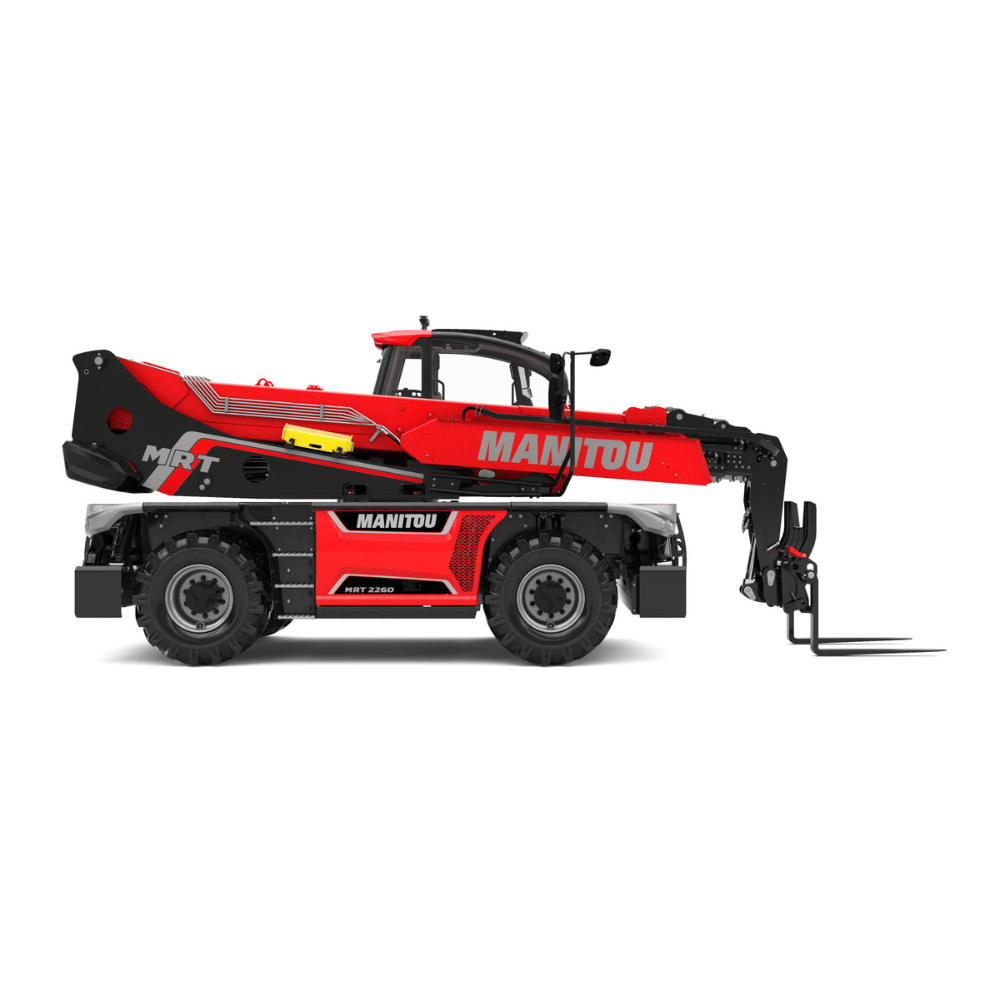

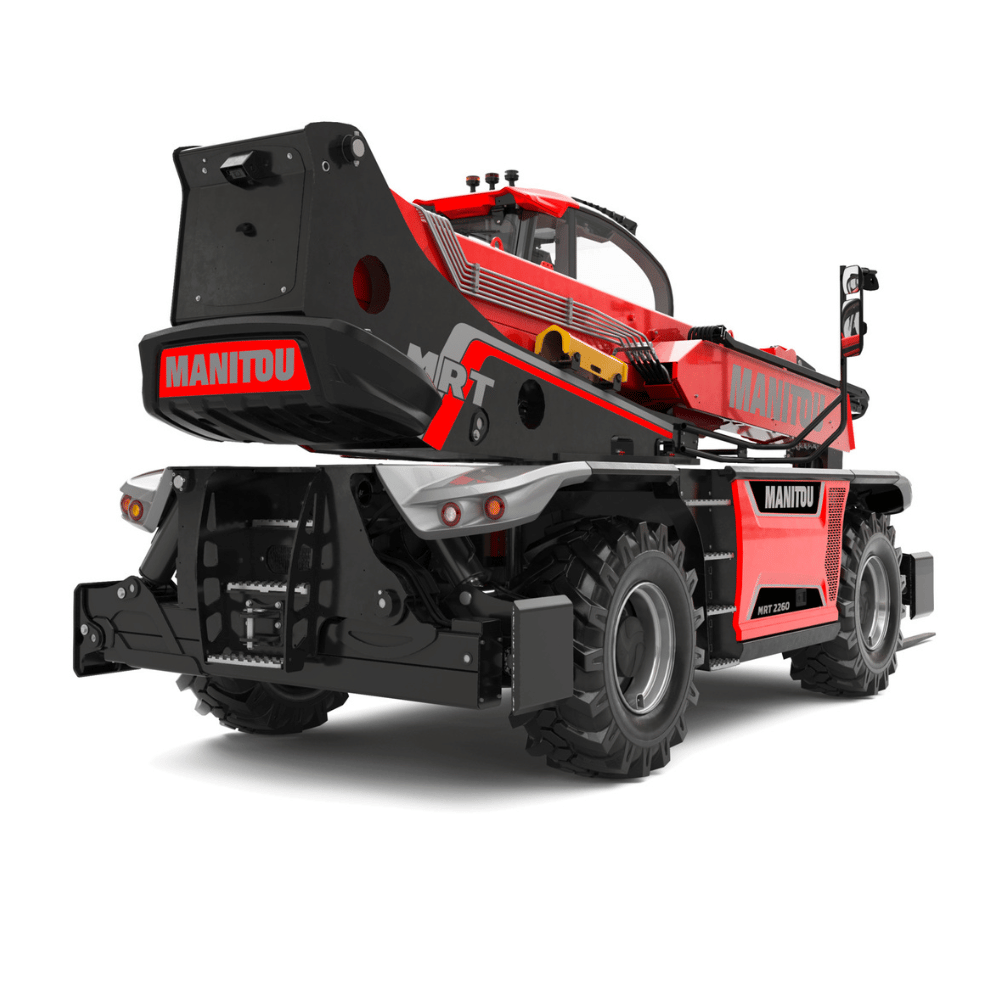

Manitou MRT-X 2260

The MRT-X 2260 is a powerful all-terrain rotating telescopic handler. This 3-in-1 machine is a telescopic handler, winch and aerial work platform with a multitude of compatible attachments for versatility and performance on your construction and industrial sites. 360° rotation of the turret and its exceptional cab visibility allows you to perform operations more easily without having to move the machine.

The pentagonal section of the boom allows for precise movement and stability of the machine with automatic leveling of the stabilizers. Equipped with smart features for optimum handling and safety, the MRT-X 2260 is the tool you won’t want to do without!

Capacities

• Max. capacity: 6000 kg
• Max. lifting height: 21.80 m
• Maximum outreach: 18.20 m

Weight and dimensions

• Overall length (with forks): 8.17 m
• Length to face of forks: 6.97 m
• Overall width: 2.50 m
• Overall height: 3.10 m
• Overall cab width: 0.96 m
• External turning radius (over tyres): 4.46 m
• Ground clearance: 0.38 m
• Wheelbase: 3.05 m
• Tilt-up angle: 12 °
• Tilt-down angle: 110 °
• Turret rotation: 360 °
• Overall weight: 18000 kg
• Forks length / width / section: 1200 mm x 100 mm x 60 mm

Wheels

• Standard tires: 445/65 R22,5
• Drive wheels (front / rear): 2 / 2
• Steering mode: 2 wheel steer, 4 wheel steer, Crab mode

Stabilisers

• Stabilizers Type: Telescopic Duplex
• Controls for stabs: Stabs Commands Individual or Simultaneous

Engine

• Engine brand: Yanmar
• Engine norm: Stage IIIA
• Engine model: 4TN107FHT-6SMU1
• Engine power (Hp / kW): 156 Hp / 115 kW
• Max. torque / Engine rotation (min): 602 Nm @ 1500 rpm
• Number of cylinders – Capacity of cylinders: 4 – 4567 cm³
• Engine cooling system: Water cooled

Electric circuit

• Number of batteries / Battery voltage: 2 x 12 V
• 12V Battery capacity: 120 Ah
• Battery starting current: (EN)850 A

Transmission

• Transmission type: Hydrostatic
• Gearbox / Number of gears (forward) / Number of gears (reverse): Speedshift / 2 / 2
• Max. travel speed: 40 km/h
• Drawbar pull: 8600 daN
• Parking brake: Automatic negative parking brake
• Service brake: Oil-immersed multi-discs braking on front & rear axles

Performances

• Gradeability (laden / unladen): 40.40 % / 45.50 %

Hydraulics

• Hydraulic pump type: Variable displacement pump
• Hydraulic flow: 172 l/min
• Hydraulic Pressure: 350 bar

Tank capacities

• Engine oil: 13 l
• Fuel: 270 l

Noise and vibration

• Noise at driving position (LpA): 68 dB
• Noise to environment (LwA): 108 dB
• Vibration on hands/arms: < 2.50 m/s²

Miscellaneous

• Steering wheels (front / rear): 2 / 2
• Controls: 2 Joysticks
• Cab certification: Cabin ROPS – FOPS level 2
• Attachment recognition system (E-Reco): Standard
