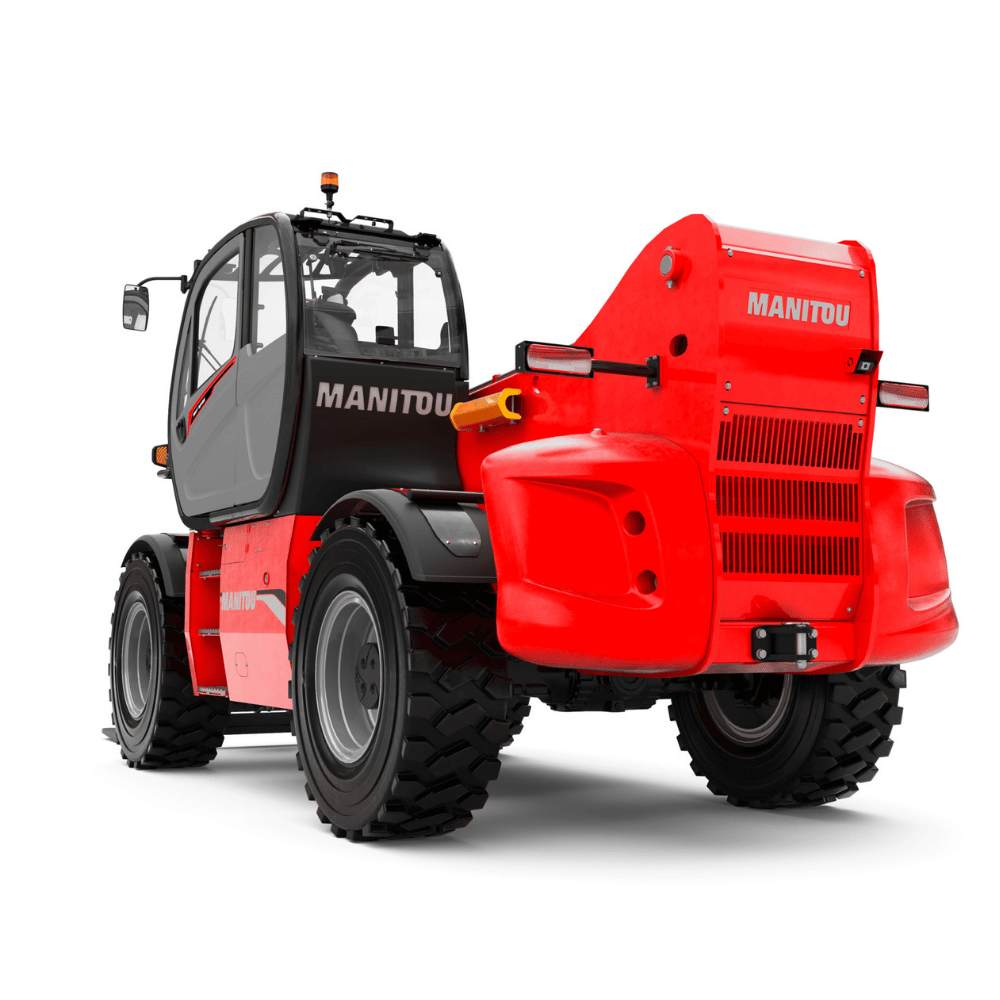

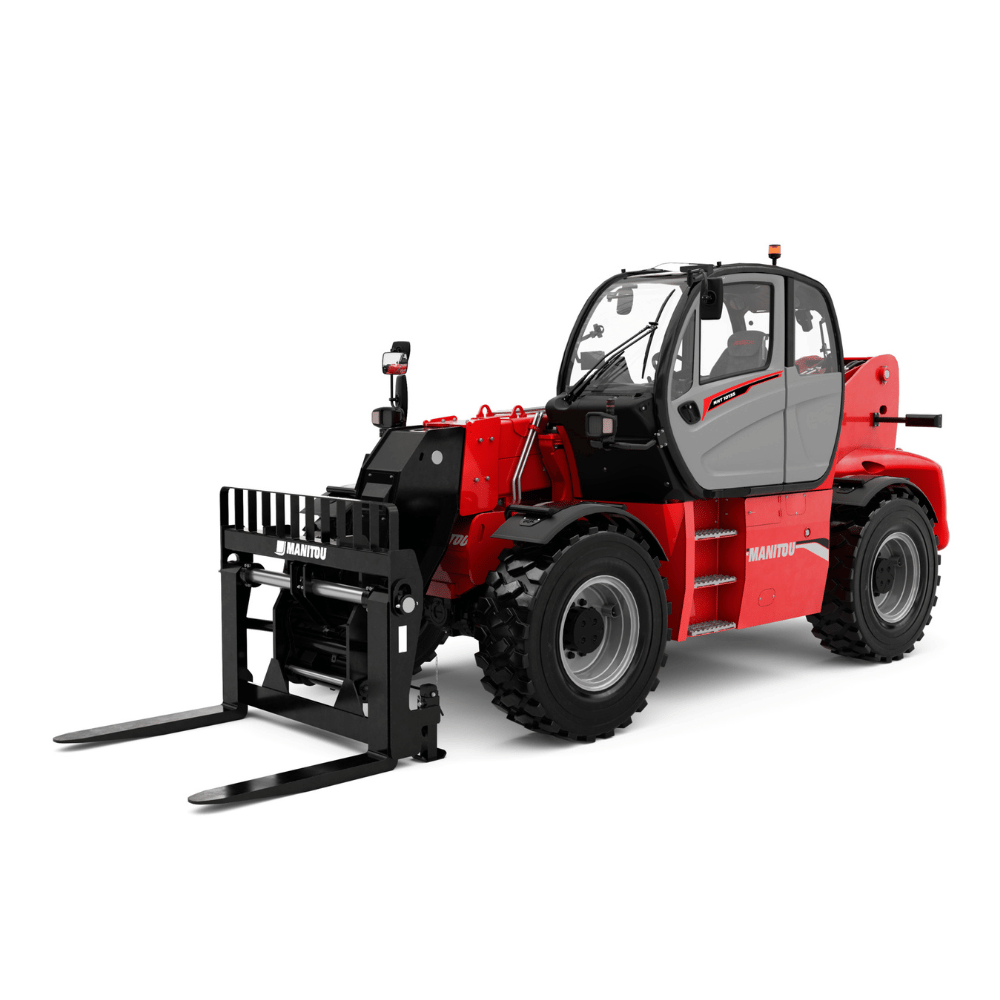

Manitou MHT-X 10135 ST3A

The MHT-X 10135 is a telescopic handler with a capacity of 13.5 tonnes and a maximum lifting height of 10 metres. Equipped with a 173 hp engine and a hydrostatic transmission, the MHT-X 10135 telescopic handler is used to handle heavy and bulky loads in complete safety and on any type of terrain thanks to its 4 driving and steering wheels.

It can be fitted with a wide range of attachments: forks, positioner, hook and winch, shovel, man basket and tyre grippers, cylinders and tubes. For maximum comfort, this machine is equipped with a panoramic, ergonomic cab, Easy Step access, JSM joystick and colour touch-screen display.

Capacities

• Max. capacity: 13500 kg
• Load center of gravity: 600 mm
• Max. lifting height: 9.60 m
• Maximum outreach: 5.20 m

Weight and dimensions

• Overall length: 7.35 m
• Unladen weight (with forks): 19950 kg
• Ground clearance: 0.43 m
• Wheelbase: 3.37 m
• Length to face of forks: 6.15 m
• Overall width: 2.54 m
• Overall height: 2.99 m
• Overall cab width: 0.95 m
• Tilt-up angle: 12 °
• Tilt-down angle: 104 °
• External turning radius (over tyres): 5.35 m
• Forks length / width / section: 1200 mm x 180 mm x 75 mm
• Frame leveling corrector: 9 °

Wheels

• Standard tires: 17,5-R25
• Number of front wheels / rear wheels: 2 / 2
• Drive wheels (front / rear): 2 / 2
• Steering mode: 2 wheel steer, 4 wheel steer, Crab mode

Engine

• Engine brand: Yanmar
• Engine norm: Stage IIIA
• Engine model: 4TN107TT-6SMU1
• Number of cylinders / Capacity of cylinders: 4 – 4567 cm³
• Engine power (Hp / kW): 173 Hp / 127 kW
• Max. torque / Engine rotation: 805 Nm@1500 rpm
• Engine cooling system: Water
• Number of batteries: 2
• Battery voltage: 12 V
• Drawbar pull: 11770 daN

Transmission

• Transmission type: Hydrostatic
• Number of gears (forward / reverse): 2 / 2
• Max. travel speed: 35 km/h
• Parking brake: Automatic negative parking brake
• Service brake: Oil-immersed multi-discs braking on front & rear axles
• Gradeability (laden / unladen): 32.40 % / 55.40 %

Hydraulics

• Hydraulic pump type: Variable displacement pump
• Hydraulic flow – Pressure: 172 l/min – 350 bar

Tank capacities

• Engine oil: 13 l
• Fuel tank: 315 l

Noise and vibration

• Noise to environment (LwA): 108 dB
• Vibration on hands/arms: < 2.50 m/s²
• Noise at driving position (LpA) tested following NF EN 12053 norm: 75 dB

Miscellaneous

• Cab certification: Cabin ROPS – FOPS level 2
• Controls: JSM
• Attachment recognition system (E-Reco): Standard
