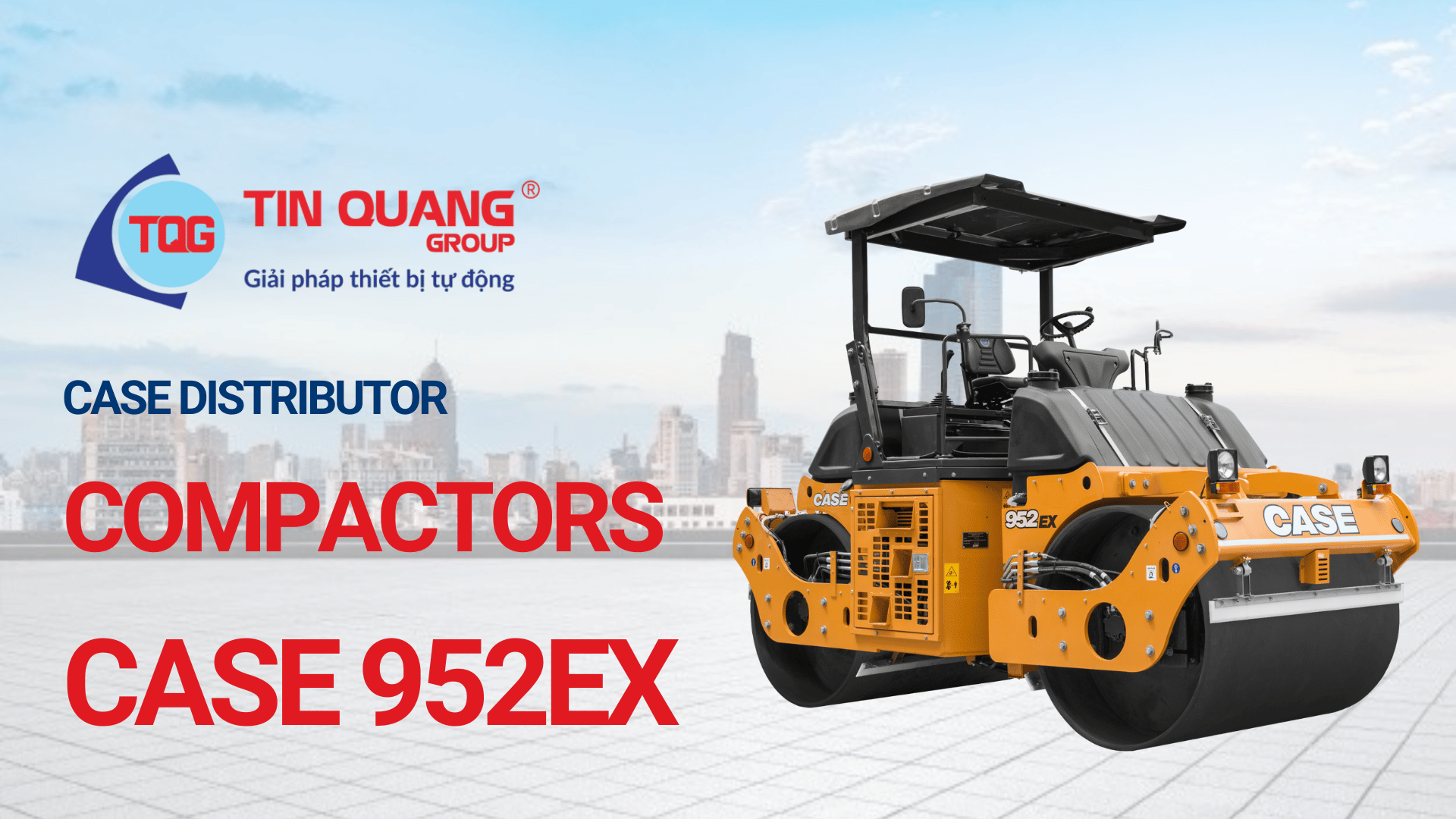

Case 952EX Compactors

Secondary brakes added for enhanced safety Sliding comfortable operator seat
Sliding & Rotating suspended seat with Dual FNR levers & Tilt Steering
Ergonomically located controls with FNR lever
AVM pads for minimizing vibrations in operator platform giving comfortable ride
Improved operator level noise
Good ground clearance for site maneuverability
Safety seat belt as standard
Best-in-class front and rear visibility
Large mirrors provide wide view to rear- additional safety while working
Well located work lights

Add to wishlist

BROCHURES

Download

Engine

Make	Ashok Leyland
Mode	lH4C4E7422
Engine Gross Power	73 HP(54.4 KW) @ 2300 rpm

Drive and Brake

Service Brake	Hydrostatic
Parking Brake	SAHR (Spring applied hydraulically released)
Gradeability	36%

Refill Capacity

Fuel Tank Capacity	140 L
Hydraulic Tank Capacity	70 L
Water Tank Capacity	390 L

Vibration System

High Amplitude	1.0 mm
Low Amplitude	0.2 mm
High Frequency	33 Hz
Centrifugal Force per Drum at High Frequency	7771 kgf
Low Frequency	50 Hz
Centrifugal Force per Drum at Low Frequency	3843 kgf

Dimensions

Overall Length	4130 mm
Overall Height	3100 mm
Overall Width	1905 mm
Front Static Linear Load	26.3 kg/cm
Rear Static Linear Load	27.7 kg/cm
Drum Diameter	1220 mm
Drum Width	1675 mm
Drum Thickness	17 mm
Ground Clearance	244 mm
Wheelbase	2690 mm
