Linde MT20 Series 8903 Pallet Trucks

Capacity: 4,500lbs. Pallet Jack.
Run Time: 8 hours
Battery 24V/224Ah
Load Wheels: Polyurethane
Automatic Parking Brake
Ergonomic Operation with Butterfly Button

The Linde MT20 electric pallet truck is designed for high-efficiency material handling, offering a load capacity of 4,500 lb. This truck is equipped with a robust AC drive motor, ergonomic controls, and a maintenance-free battery system, ensuring consistent high performance and reliability. The MT20 is ideal for short-distance transfers in warehouses and retail environments, providing a comfortable and productive working environment with minimal operator strain.

Robust Design

Robust two-piece bumper protects the drive unit and components
Low chassis frame
Long, low-mounted tiller ensuresoperator is comfortable distance from the truck
Rugged, reinforced fork structureprovides handling of loads up to4,500 lbs

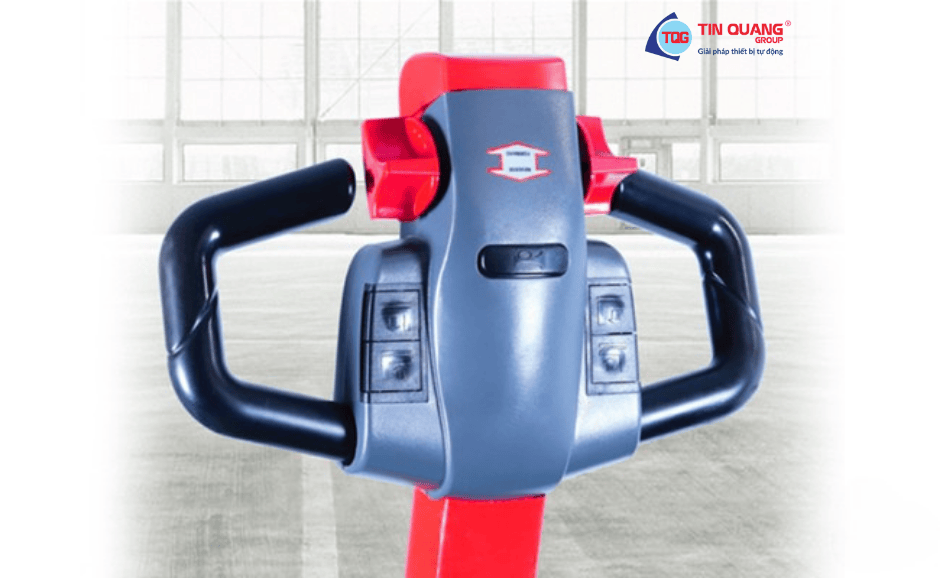

Controls

Traction and lift controls grouped onergonomic tiller head
Dual butterfly control levers for usewith either hand
Belly switch on tiller head stops truckwhen actuated

MT20 Specification Sheet

Learn more about how the Linde MT20 fits into your operation. Download to view the full specification sheet.

Download PDF

Features

Powerful AC Drive Motor

The Linde MT20 features a powerful AC drive motor with adjustable travel speed and acceleration parameters. This system provides smooth handling performance, enhancing productivity and reducing service costs through extended uptime.

Ergonomic Control System

The MT20 is designed with an ergonomic tiller head, featuring dual butterfly control levers that allow for precise traction control with either hand. The long, low-mounted tiller arm ensures the operator maintains a comfortable working distance from the truck

Maintenance-Free Battery

The MT20 is equipped with a maintenance-free battery pack and an automatic lift cutoff system, which activates when the battery reaches 80% discharge. This design extends battery life and ensures continuous operation during shifts.

Durable and Robust Construction

The MT20’s robust two-piece bumper protects the drive unit and components, while the reinforced fork structure ensures safe handling of loads up to 4,500 lbs. The low chassis frame provides stability and allows for easy pallet entry and exit.
