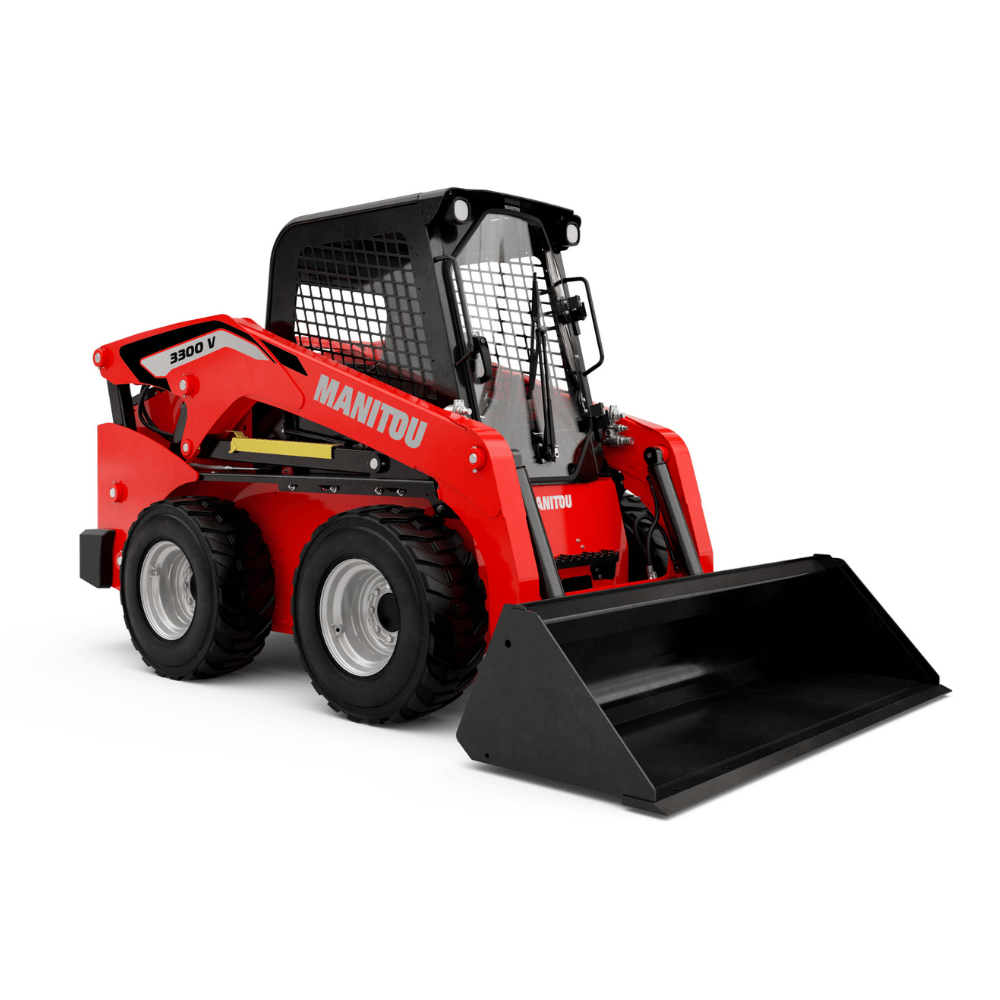

Manitou 3300 V NXT2

  • Wheelbase: 1257 mm
  • Overall Operating Height – Fully Raised: 4369 mm
  • Height to Hinge Pin – Fully Raised: 3332 mm
  • Overall Height to top of ROPS: 2083 mm
  • Dump angle at full height: 42 °
  • Dump height: 2502 mm
  • Overall length with bucket: 3874 mm
  • Dump reach – Full height: 813 mm
  • Rollback at ground: 29 °
  • Seat to ground height: 1041 mm
  • Overall width less bucket: 1829 mm
  • Bucket Width: 1880 mm
  • Ground clearance: 229 mm
  • Overall length – Less Bucket: 3023 mm
Add to wishlist

Discover the unprecedented performance of the vertical-lift 3300 V NXT: 2 skid loader. Equipped with a Yanmar engine, this latest generation skid loader helps you perform all your loading, grading and excavation under the ground level. Compact, rugged, and made for all-terrain, this unit is the ideal solution for working in hard to reach areas on uneven surfaces. Change attachments within minutes and get a solution for every project! The vertical-lift 3300 V NXT:2 skid loader facilitates your various daily loading operations and delivers excellent operator visibility from the cab.

  • Rated Operating Capacity: 1497 kg
  • Unladen weight: 4087 kg
  • Wheelbase: 1257 mm
  • Overall Operating Height – Fully Raised: 4369 mm
  • Height to Hinge Pin – Fully Raised: 3332 mm
  • Overall Height to top of ROPS: 2083 mm
  • Dump angle at full height: 42 °
  • Dump height: 2502 mm
  • Overall length with bucket: 3874 mm
  • Dump reach – Full height: 813 mm
  • Rollback at ground: 29 °
  • Seat to ground height: 1041 mm
  • Overall width less bucket: 1829 mm
  • Bucket Width: 1880 mm
  • Ground clearance: 229 mm
  • Overall length – Less Bucket: 3023 mm
  • Departure angle: 25 °
  • Clearance Radius – Front with Bucket: 2400 mm
  • Travel speed (unladen): 13 km/h
  • Travel Speed with Two-Speed Option – Maximum: 19.60 km/h
  • Standard tires: 14.00 x 17.5 HD
  • Engine brand: Yanmar
  • Engine model: 4TNV98CT-NMS
  • Max. torque / Engine rotation; 294 Nm / 2500 rpm
  • Power source: Diesel
  • Engine power (Hp / kW): 72 Hp / 52.70 kW
  • Battery voltage: 12 V
  • Alternator: 95 kW
  • Starter: 3 kW
  • Standard flow – Auxiliary hydraulics: 89.10 l/min
  • Auxiliary Hydraulic Pressure: 237.90 bar
  • High-Flow Auxiliary Hydraulics – Option: 132 l/min
  • High-Flow Auxiliary Hydraulics Pressure – Option: 220.60 bar
  • Fuel tank: 92.70 l
  • Hydraulic tank capacity: 40 l
  • Displacement: 3.30 l
  • Noise to environment (LwA): 101 dB
  • Noise at driving position (LpA): 85 dB
  • Whole-Body Vibration (ISO 2631-1): 0.79 m/s²
  • Vibration on hands/arms: < 1.20 m/s²

Technical sheet
