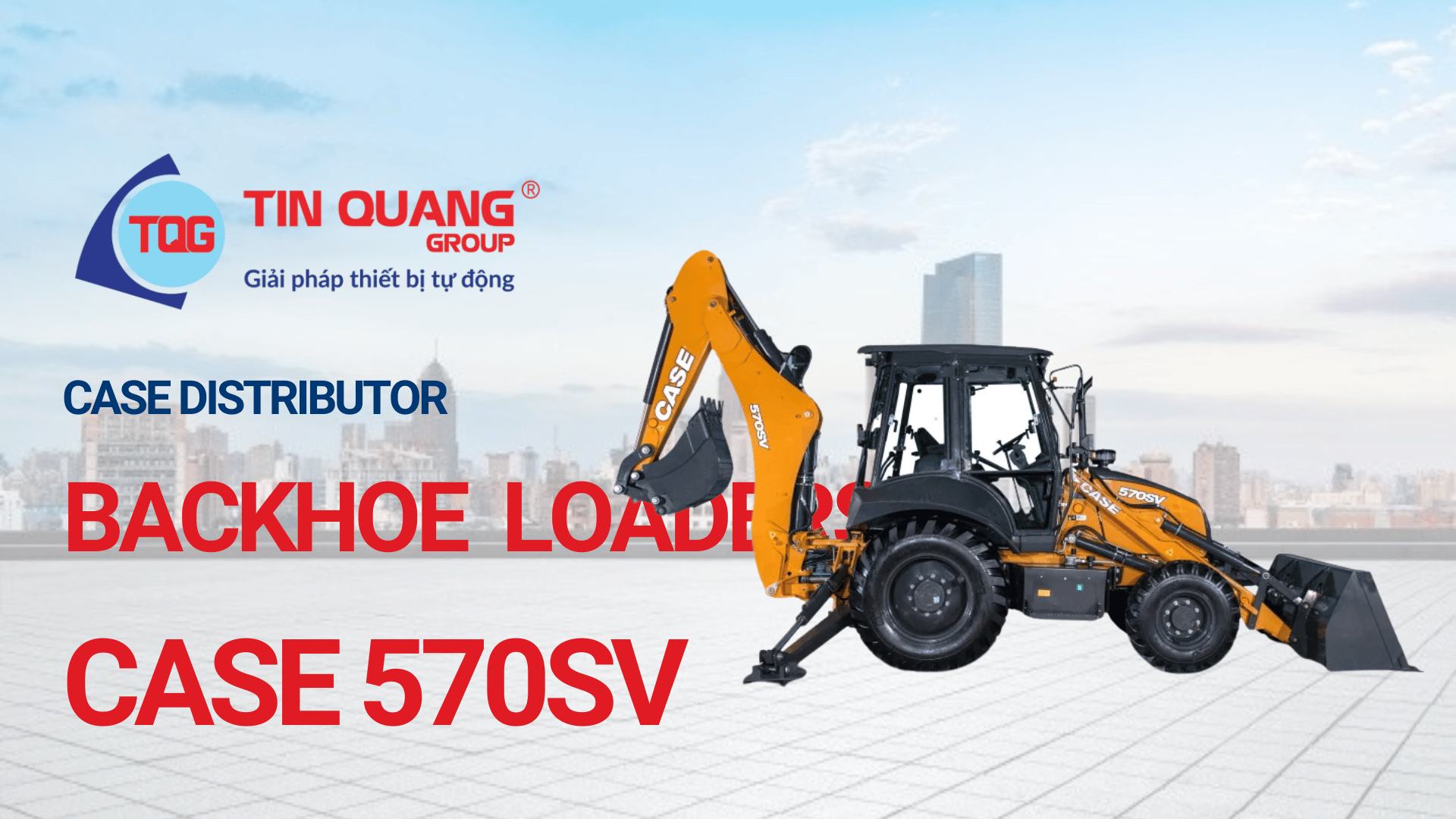

Case 570SV Backhoe Loaders

Built on the shoulders of Giants the 570SV is packed with class leading features and delivers outstanding performance and power. Fitted with our, truly legendary FPT, S8000 engine this little machine steps up and delivers in the toughest of conditions. Adding to this our S-tyle, robust boom and our straight loader arms and you get outstanding digging and loading performance.

Engine Power: 72 kW (97 hp)
Dig Depth: 4400 / 5892 mm

ENGINE

Make and Model	S8000 BS-3 Certified-8045.45.748
Injection system	Direct Injection, Turbo charged Intercooler
Emissions level	Tier 3
# of cylinders	4
Bore / Stroke	104 mm x 115 mm
Displacement / Compression ratio	3.9 ltr
Engine Power (ISO 14396) @2200 rpm	–
Rated Power Gross (ISO 14396)	97 hp (72 kW) @ 2200 rpm
Maximum torque (ISO 14396)	420 Nm @ 1300 rpm
Rated Power Net (ISO 14396)	94 hp (70 kW) @ 2200 rpm
Engine speeds	2200 rpm (rated speed @ full load)

TRANSMISSION

Type	Manual shift, 4 speed, Fully sync.
Model/Make (2WS/4WD)	Carraro 2WD TLB1/Carraro 4WD TLB1

FRONT AXLE

Model

Carraro 26.17 M

BRAKES

Service brakes	Hydraulic foot operated, 2 discs per side
Parking brakes	Mechanically actuated caliper type brake pack on rear axle input shaft

STEERING

Type	Hydrostatic with integrated top valve
System pressure / Displacement	140 bar / 125 cc

TIRES

Front	16” or 18”
Rear	25” or 28”

HYDRAULIC SYSTEM

Type	Load sensing, closed center hydraulic system
Flow (@ 2200 rpm)	145 l/min
Pressure	205 bar

SERVICE CAPACITIES

Engine oil	8.6 l
Transmission oil 2WD/4WD	–
Front axle 4WD oil	8.9 l
Rear axle oil	17.1 l
Hydraulic oil	107 l
Fuel tank	129 l
Coolant	20 l

ELECTRICAL SYSTEM

Voltage	12 V
Battery	Single: 130 Ah 720 A
Alternator	120 A

CAB

Certification	ROPS / FOPS
Air Conditioning	Optional
Storage compartments capacity	–
Speedometer	Standard
